My pal asked me if I can make some details for his JS Mill drill machine.

It should be a cap for calibration unit and an additional support for drill itself.

Since I'm not good in 3d editors at all Openscad sounds good for me where I can do everything with functions.

First one a cap is simple:

  1. draw big cylinder
  2. and differ with smaler one.
// Js Mill cap

diameter = 18.15;
radius = diameter / 2;

height = 20;
height_top = 1;
diameter_inner = 16;
radius_inner = diameter_inner / 2;

module main_model() {
    cylinder(height,radius,radius,true);
}

difference(){
    main_model();
    translate([0, 0, height_top]) {
      cylinder(height,radius_inner,radius_inner,true);
    }
}

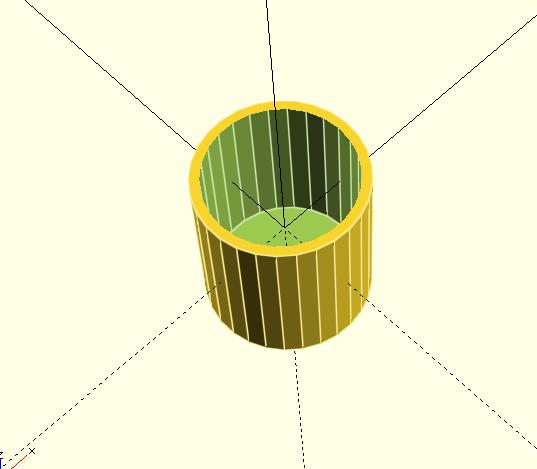

Js Mill calibration cap

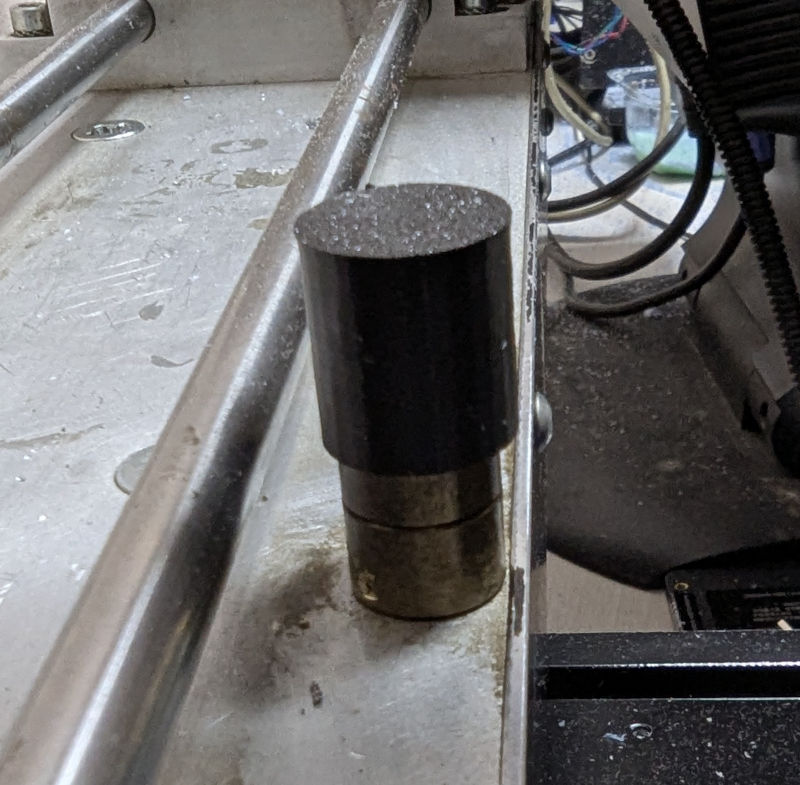

Js Mill Cap real

The next one a bit complicated.

  1. Create main cylinder.
  2. create bottom cylinder
  3. differ with the internal cylinder
  4. differ with a block to make it more flexible
// Js MILL drill support

diameter = 18;
radius = diameter / 2;
height = 23;
diameter_inner = 14.6; // 13.8 ?
radius_inner = diameter_inner / 2;
diameter_outer = 21.97;
radius_outer = diameter_outer / 2;
height_bottom = 1.8;

line_size = 0.8;

module main_model() {
    cylinder(height,radius,radius,true);
    translate([0, 0, - height / 2 + 0.9]) {
        cylinder(height_bottom,radius_outer,radius_outer,true);
    }
}

difference(){
    main_model();

    cylinder(height * 2,radius_inner,radius_inner,true);

    translate([-radius, 0, 0]) {
        cube([height, line_size, height * 2], true);
    }
}

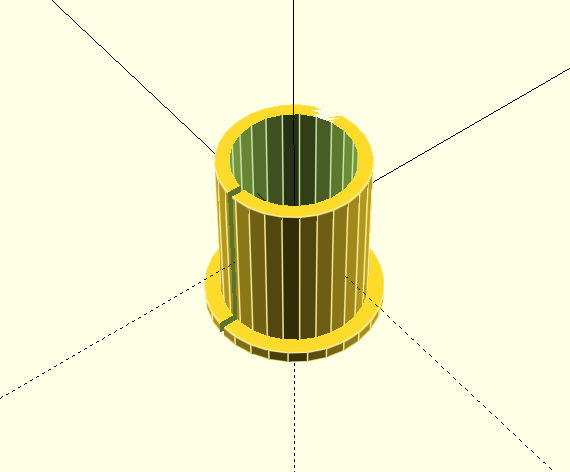

Js Mill drill support

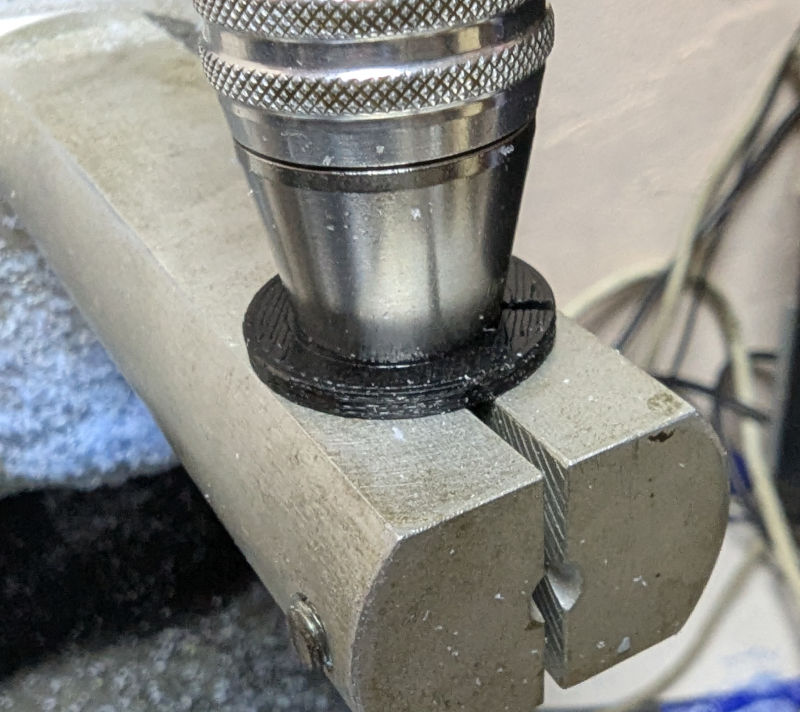

Js Mill drill support real

I know these lines of code are simple. But changing the sizes without touching anything else is quite good when printed model was tested and sizes should be adjusted. As far as I remember I spent about half an hour for both models. And had a lot of fun from these simple projects!
